Aftermarket Murphy 100 PSI Pressure Switch Gauge 20P-100 05703115
SKU:ST-82531544
Couldn't load pickup availability
- Overview
- Shipping & Delivery
- Warranty

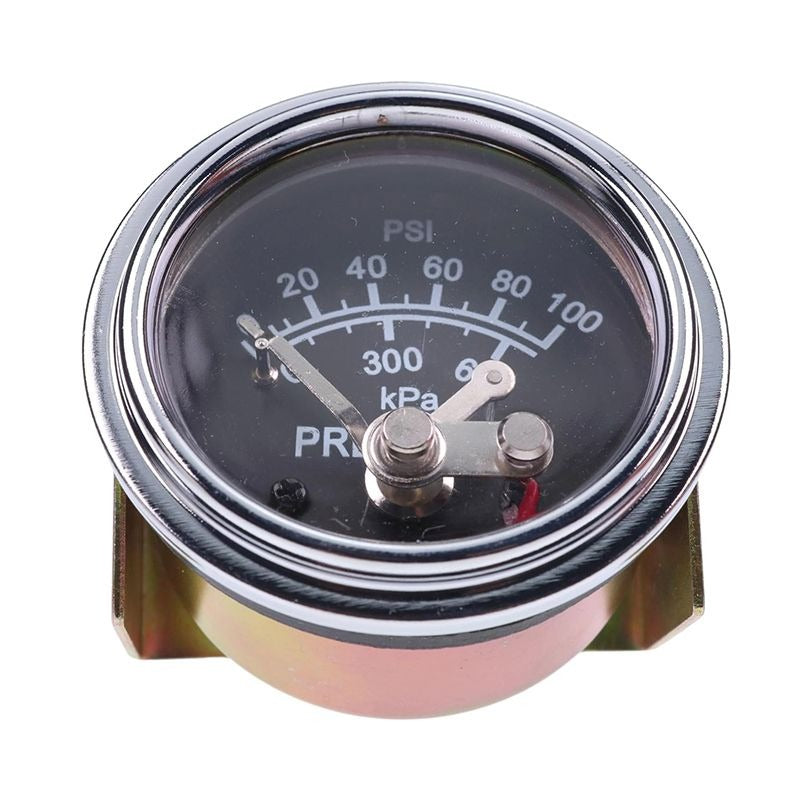

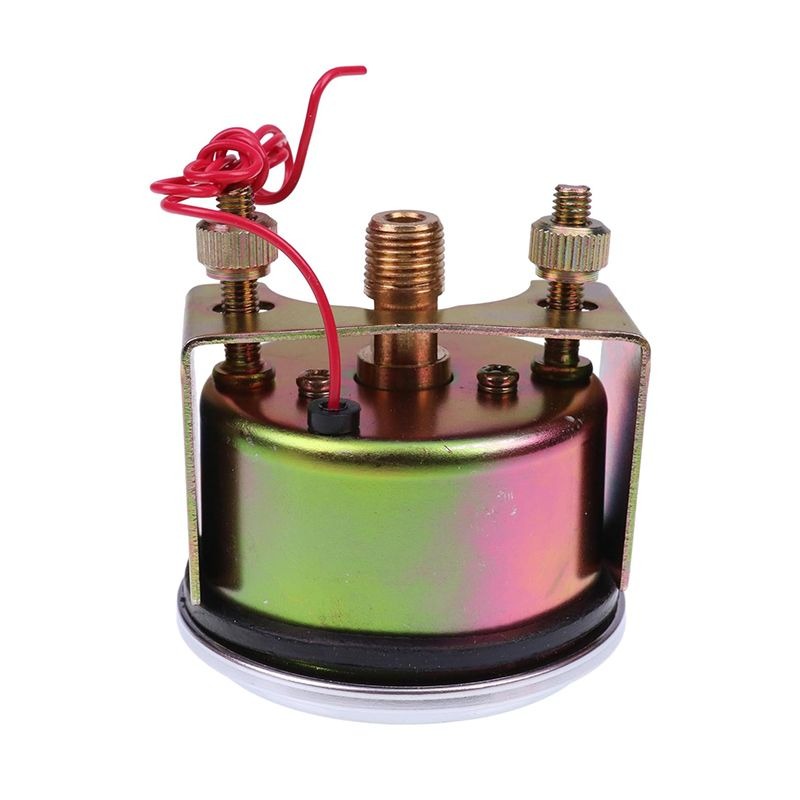

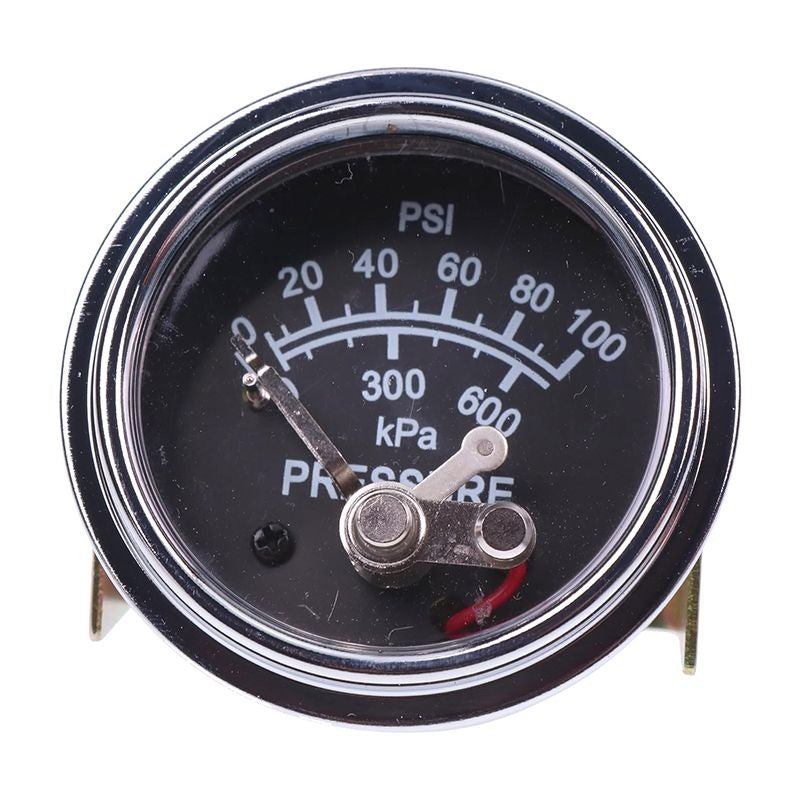

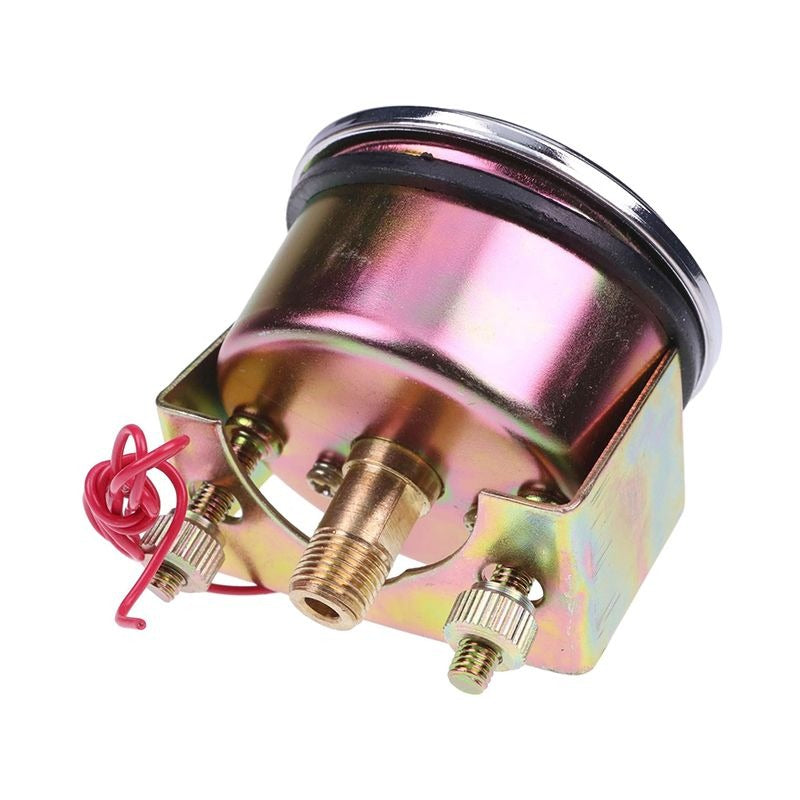

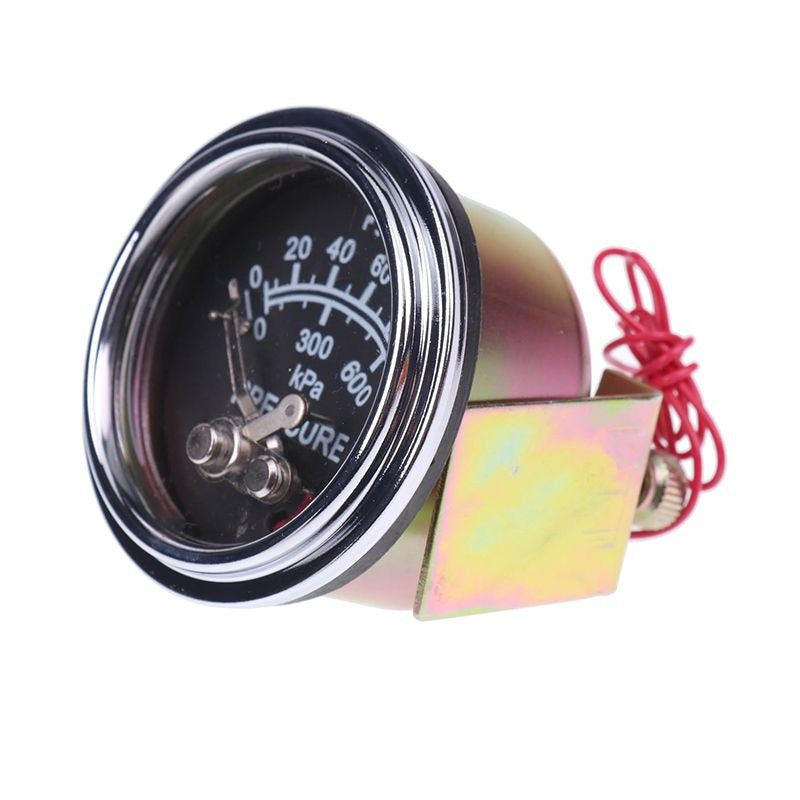

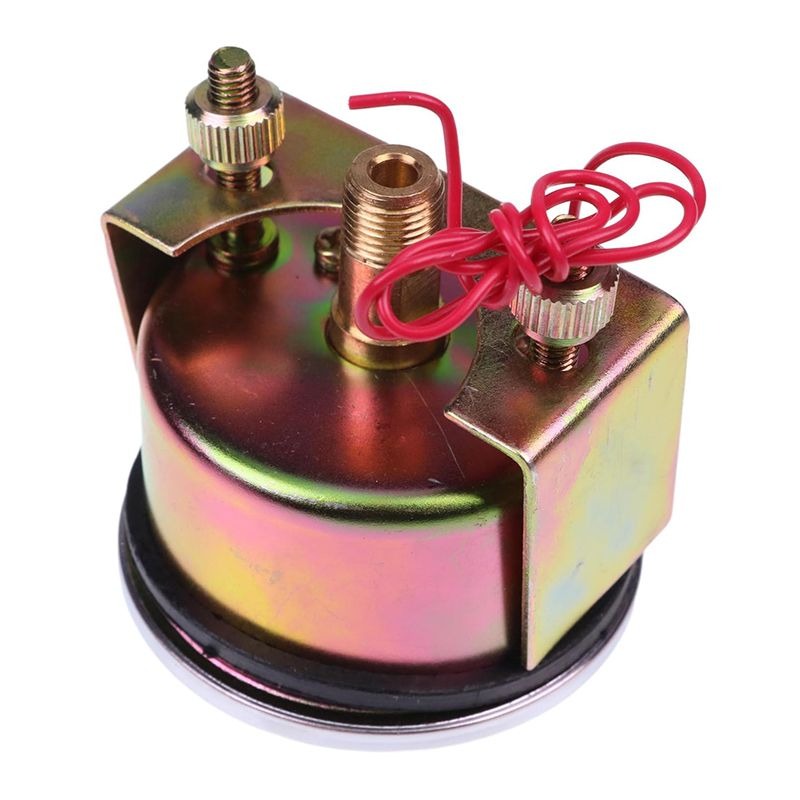

Product Name: Aftermarket Murphy 100 PSI Pressure Switch Gauge 20P-100 05703115
Replace Part Number: 20P-100, 20P100, 05703115
Description:
The Murphy 0-100 PSI Mechanical Pressure Swichgage 20P-100 is a diaphragm-actuated, pressure-indicating gage with a built-in electrical switch. This swichgage is used for tripping alarms and/or shutdown devices. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.
The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the Swichgage case and have self-cleaning motion to ensure electrical continuity. The gage pointer makes with an adjustable contact to complete a pilot-duty circuit. Specifically designed to protect engines/equipment in oil field, marine, irrigation, construction and trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure and air pressure.
Product Features:
2 inch/51 mm dial
Combination Indicating Gage and Limit Switch
Switch Can Activate Alarms and/or Shutdown Equipment
Exceeds SAE Standards
Technical Specifications:
Part Numbers: 20P-100
Range: 0-100 psi (690 kPa) [7.0 bar]
Dial: White on black, dual scale; U.S.A. standard scale is psi/kPa
Case: Plated steel; mounting clamp included (except for direct mount models)
Bezel: Polished stainless steel
Lens: Polycarbonate, high-impact
Oil: Silicon Oil
Temperature Range: Ambient: -40°F (-40°C) thru 150°F (66°C); Process: -40°F (-40°C) thru 250°F (121°C)
Process Connection: 1/8-27 NPTM brass
Sensing Element: Beryllium copper diaphragm
Adjustable Limit Contact: SPST contact; pilot- duty only, 2 A @ 30 VAC/DC; Normally Close (NC) when the low limit is met. Normally Open (NO) when pointer is in normal operating range. Contacts are gold flashed silver
Limit Contact Adjustment: by a 1/16 in. hex wrench thru 100% of the scale
Limit Contact Wire Leads: 18 AWG (1.0 mm2) x 12 in. (305 mm)
