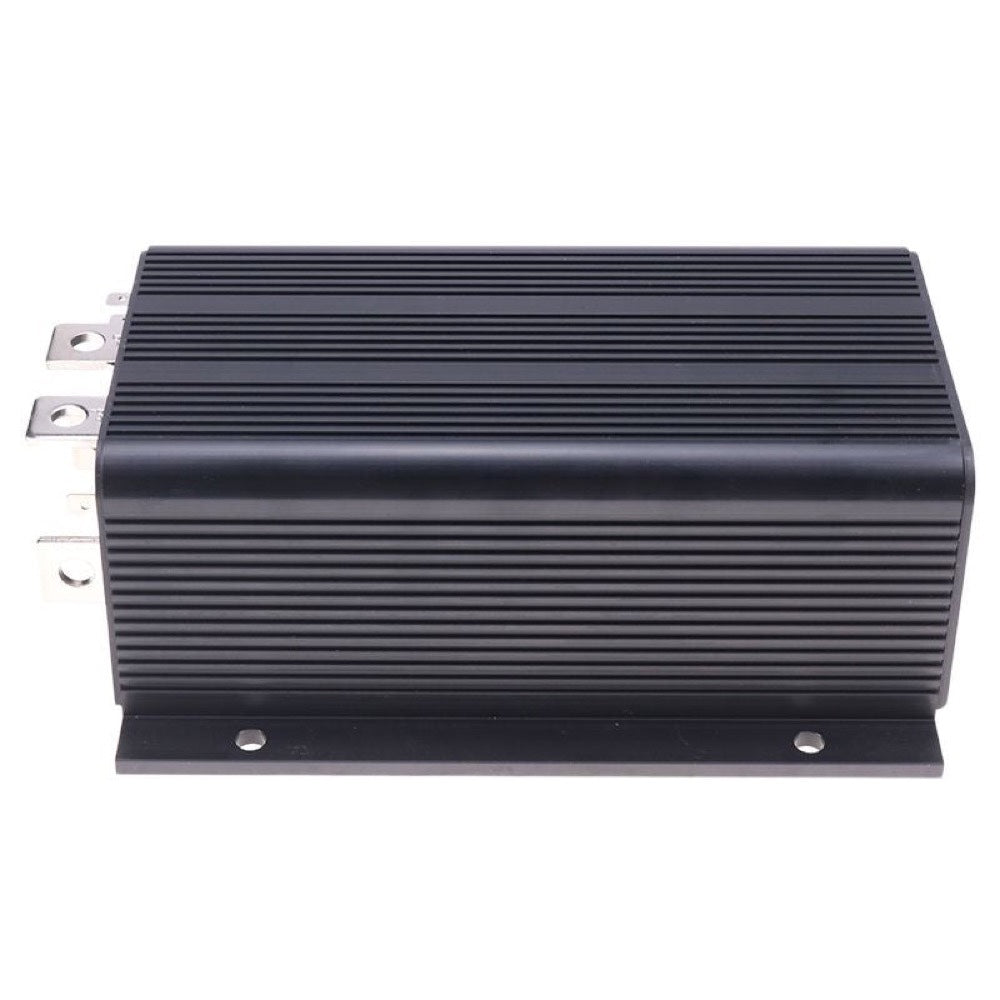

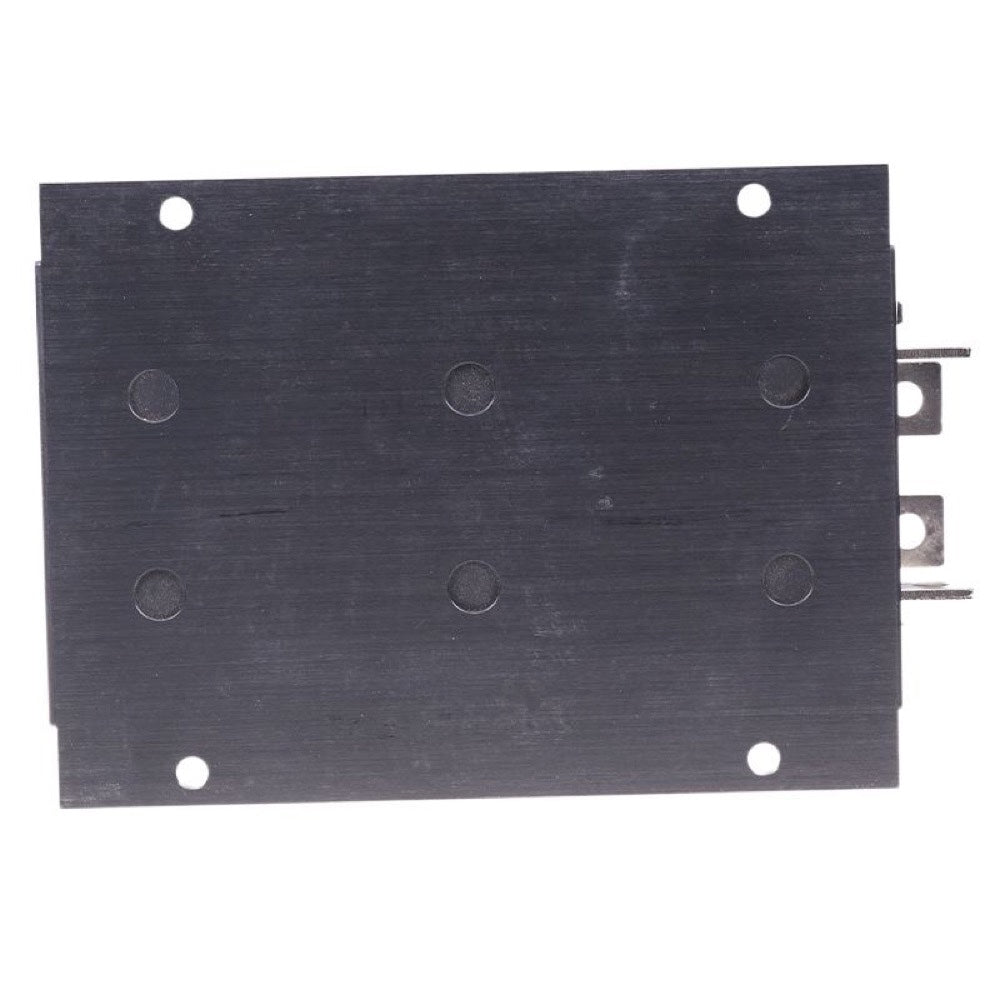

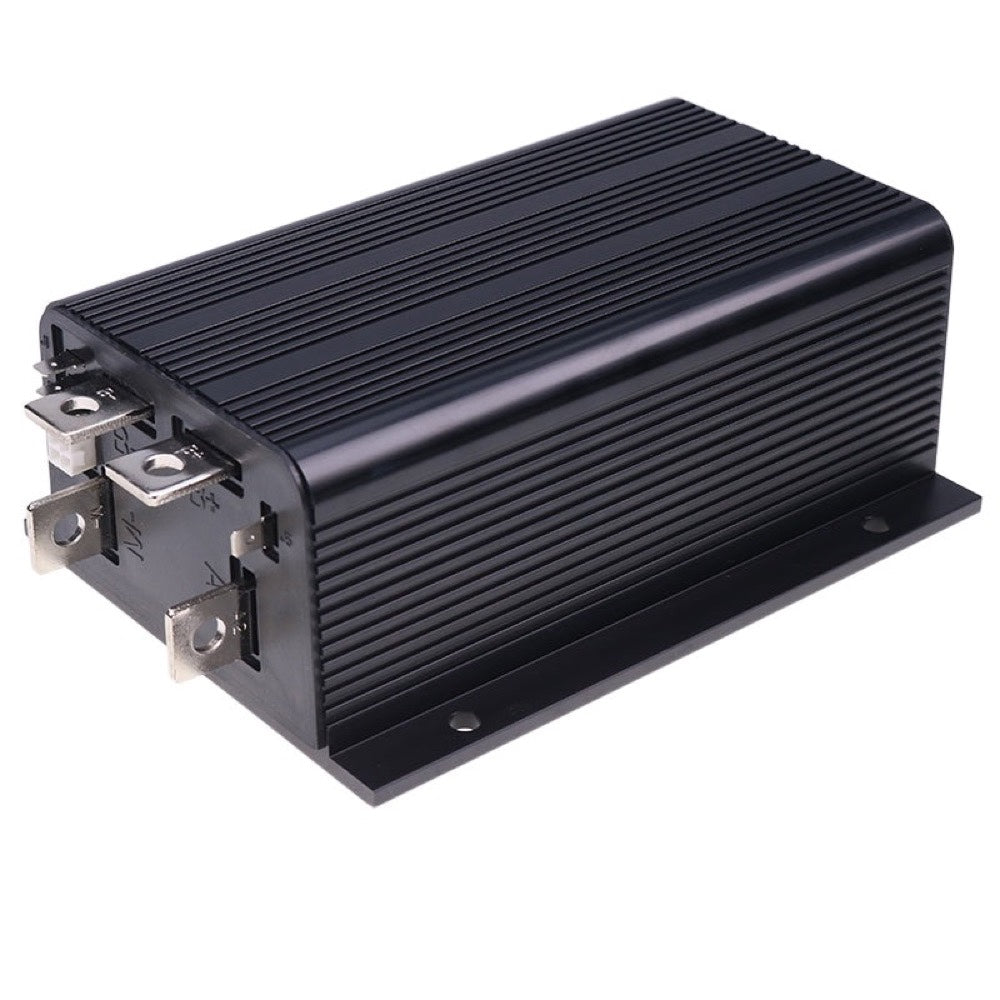

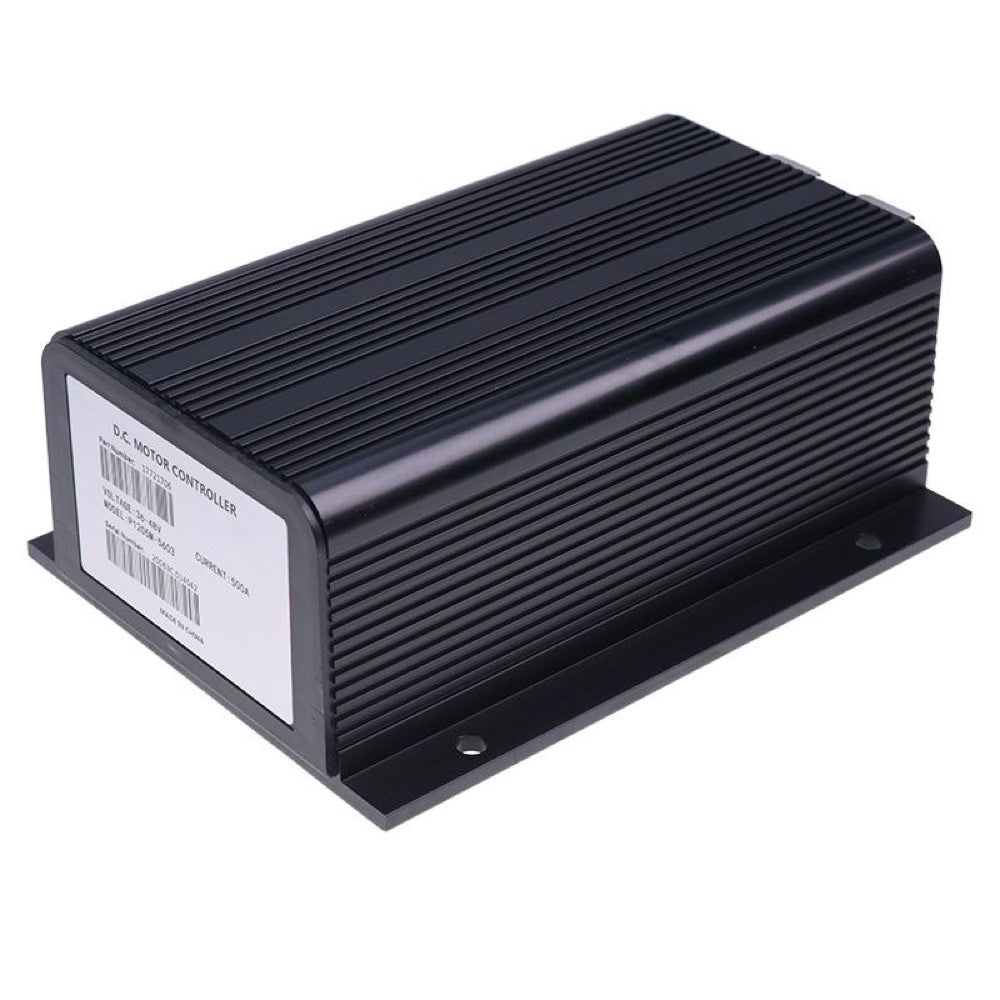

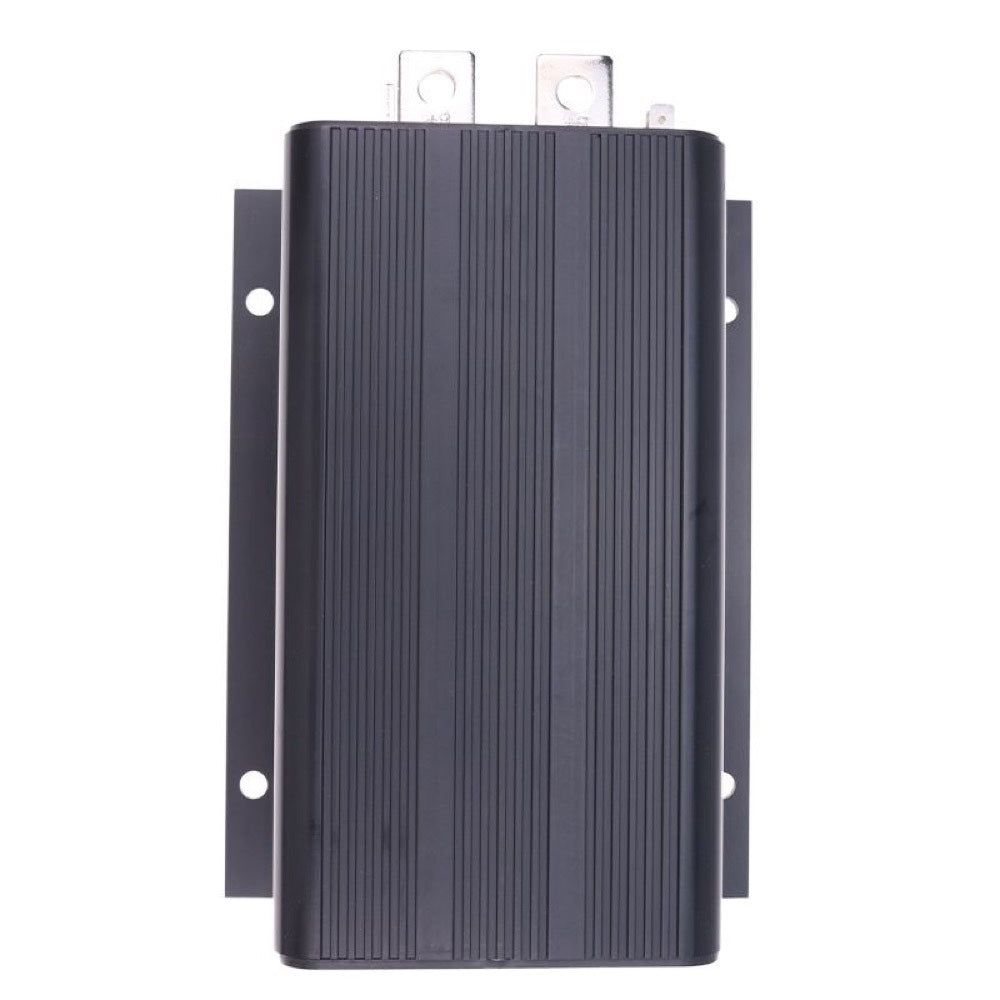

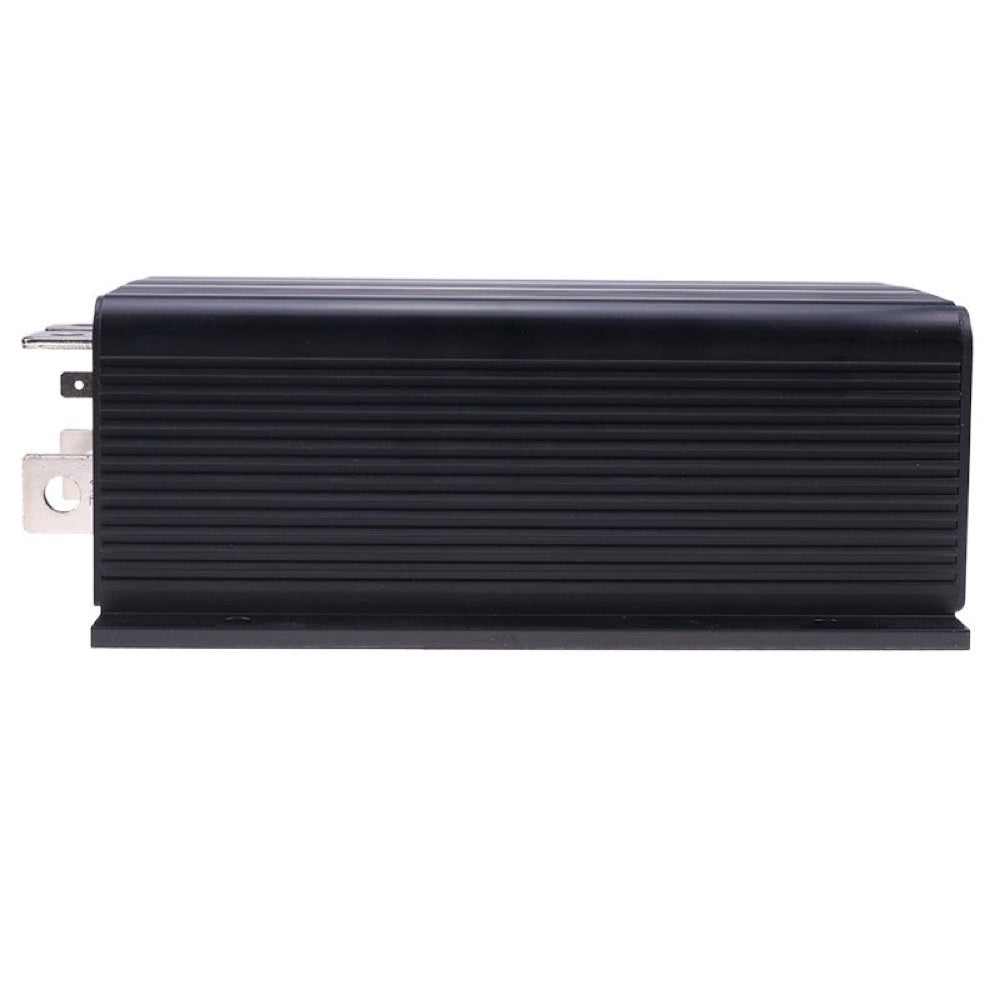

60V 72V 400A DC Motor Controller P125M-6B403 Replacing compatible with 1205M-6B403 1205M-6B401

Part Name: 60V 72V 400A DC Motor Controller P125M-6B403 Replacing compatible with 1205M-6B403 1205M-6B401

Replace Part Number:
P125M-6B403 DC Series Motor Controller
Not CURTIS Product
Replacing CURTIS 1205M-6B403
Upgraded Version of 1205M-6B401 (Part Number: 17721701) & Fully Compatible
60/72V - 400A

The P125M-6B403 controller is a DC series winding motor speed controller, designed as the replacement of CURTIS 1205M-6B403 controller (and old CURTIS 1205M-6401 and 1205M-6B401 controllers).
Made by a Chinese manufacturer, the P125M-6B403 controller is fully compatible with CURTIS programming devices, and the quality had been approved by many vehicle makers. All parameters of P125M-6B403 are the same as its original version of CURTIS 1205M-6B403. So the buyer can take the CURTIS 1204M/05M/09/21M controller manual as its own manual.

Key Features:
Controller Model: P125M-6B403 (Replacement of CURTIS 1205M-6B403)
Norminal Battery Voltage (Volts): 60V / 72V (Two voltage settings are available. The voltage can be set to either 60 volts or 72 volts. By defaut, it is set as 72 volts.
The buyer should confirm with the seller the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0-5V). There is no extra cost for reprogramming the controller or other CURTIS programmable devices.
By defaut, we will the controller of setting of 72V / 400A / 0-5kΩ (Throttle Type = 0).
1 Minute Current Rating (Amps): 400
5 Minute Current Rating (Amps): 275
1 Hour Current Rating (Amps): 175
Plug Braking (A2 Busbar): Yes
Ten Throttle Types Can Be Used with P125M-6B403:
Type 0: 2-wire potentiometer, 0–5kΩ
Type 1: 2-wire potentiometer, 5kΩ–0
Type 2: single-ended 0–5V input
Type 3: 2-wire potentiometer, 4.6kΩ–0
Type 4: 2-wire potentiometer, 5.5kΩ–0
Type 5: 2-wire potentiometer, 1kΩ–0
Type 6: ITS input
Type 7: single-ended 6.3–10.6 V input
Type 8: single-ended 6–12 V input
Type 9: single-ended 3-wire potentiometer, 0–5kΩ
Features Include:
High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.

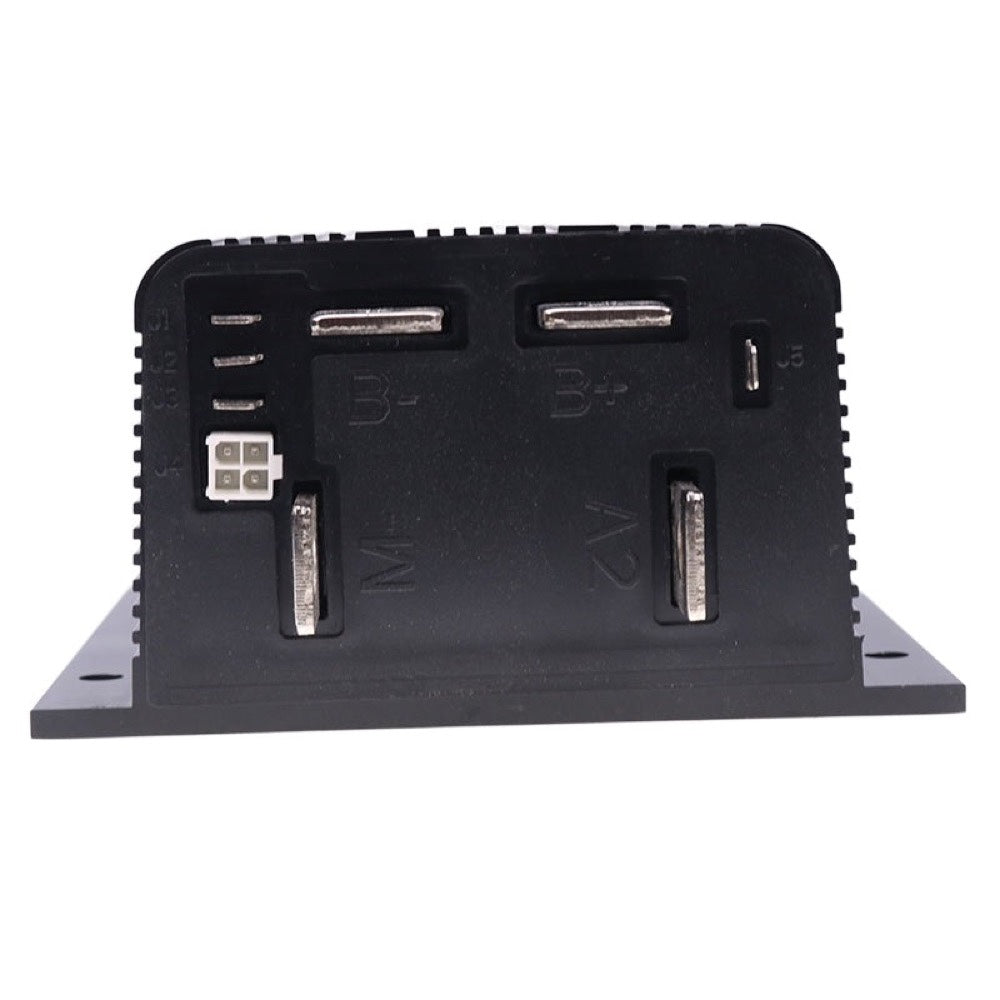

Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
Compatible with either a two-wire potentiometer or a voltage throttle.
Throttle fault protection circuitry disables controller if throttle wires become open.
High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
Plug braking diode internal to controller.
Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
Easily programmable through the Curtis Model 1313-4401 Handhold Programmer or 1314 PC Programming Station
Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
Product Specifications: P125M-6B403 (1205M-6B403) CONTROLLERS
Nominal Input Voltage: 60/72 V (1205M-6B403 has two available battery voltage settings. The voltage can be set to either 60 volts or 72 volts.)
Pwm Operating Frequency: 15.6 kHz
Electrical Isolation to Heatsink (Min.): 500 V
Ksi Input Current (No Contactors Engaged): <70 mA without programmer; <130 mA with programmer
Logic Input Current: <2 mA
Status Led Output Current (Max.): 2 mA
Throttle Type: 2-wire 0 – 5kΩ, 2-wire 5kΩ – 0, or 0 – 5V
Storage Ambient Temperature Range: -40°C to 85°C (-40°F to 185°F)
Operating Ambient Temp. Range: -40°C to 50°C (-40°F to 122°F)
Package Environmental Rating: ISTA 2A; electronics sealed to IP65
Weight: 2.7 kg
Dimensions (L× W×h): 199 × 146 × 77 mm
Regulatory Compliance: Safety — Designed to the requirements of EN 1175; EMC — Designed to the requirements of EN 12895 and EN 61000
