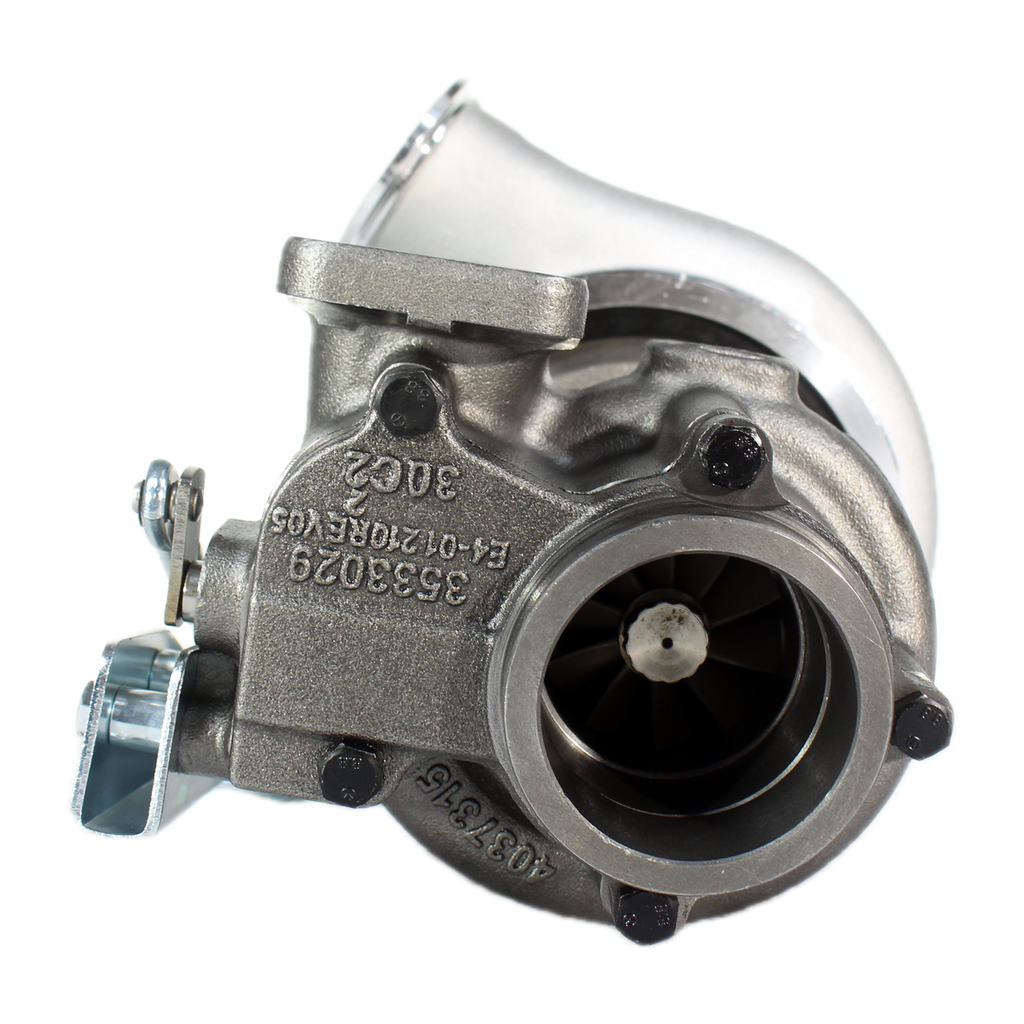

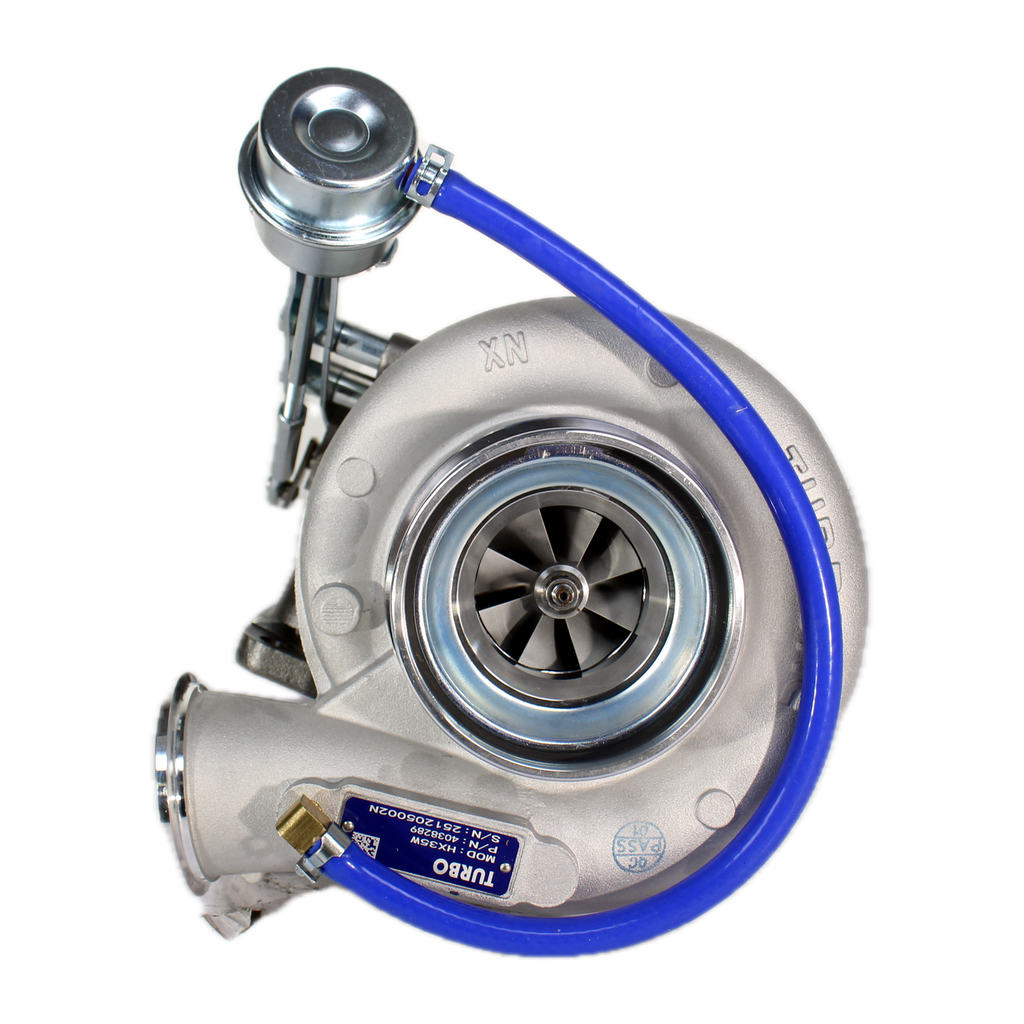

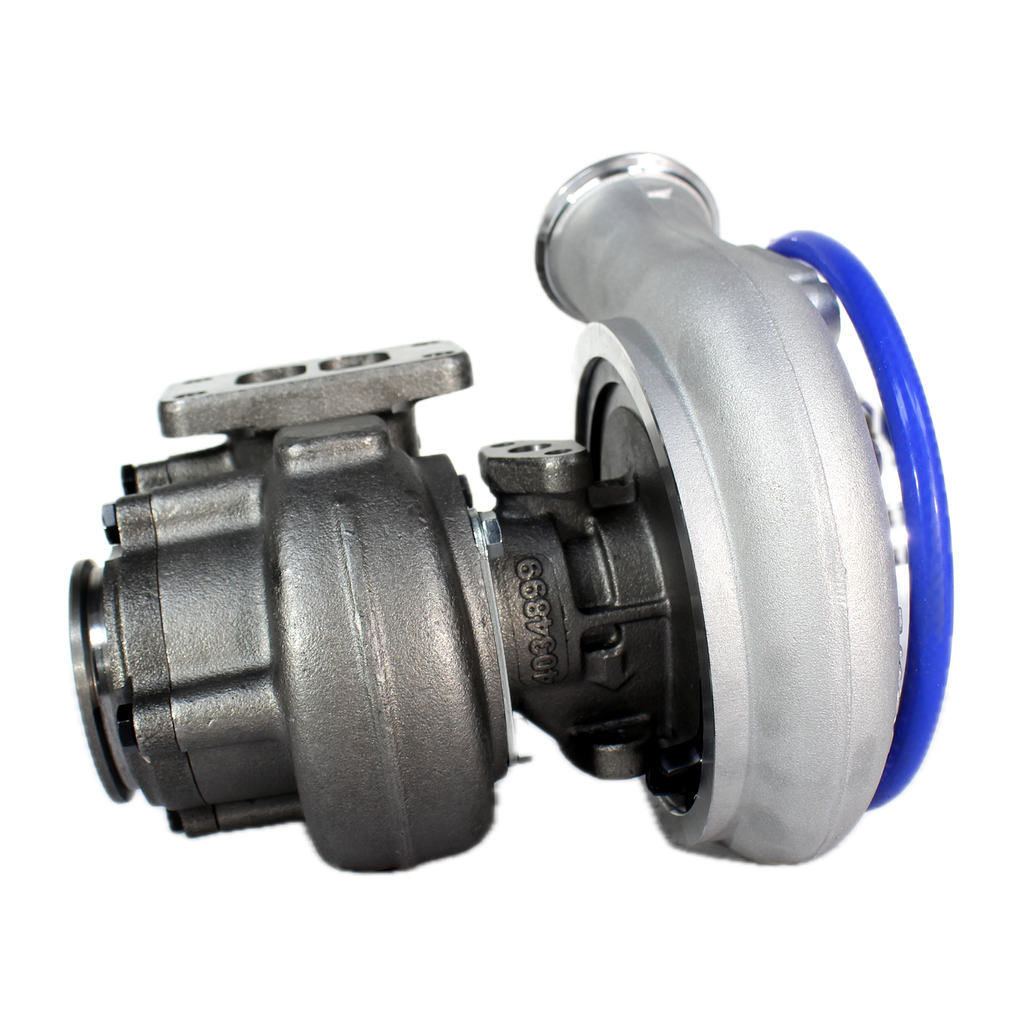

HX35W Turbocharger 4038289 for Industrial Truck with Cummins QSB Engine
SKU:ST-89063859
Couldn't load pickup availability
- Overview
- Shipping & Delivery
- Warranty
Product Name: HX35W Turbocharger 4038289 for Industrial Truck with Cummins QSB Engine
HX35W,HX35W-A77J70GM/A70Q86FE14PB-W
Part Number: 4038289
Interchangeable Number:
4033681H,4038211H,4038597,4038597R4038597RX,4038598,4044890H,4955156,4955156NX,4955156RX,5452081,5452081NX,5452081RX,5452082,5452082NX,5452082RX
OEM Number: 4033681,4038209,4038211,4038287,4039333,40414274042667,4043678,4044890
Fits Engine: QsB
Product Applications:
Fits the Following Models:
2004-12 Industrial with Cummins QSB Engine
2004-12 Truck with Cummins QSB Engine
Part Number: 4038289
Interchangeable Number 4033681H,4038211H,4038597,4038597R4038597RX,4038598,4044890H,4955156,4955156NX,4955156RX，5452081,5452081NX,5452081RX,5452082,5452082NX,5452082RX
OEM Number: 4033681,4038209,4038211,4038287,4039333,40414274042667,4043678,4044890
Turbo Model: HX35W,HX35W-A77J70GM/A70Q86FE14PB-W
Year: 2004-12
Fits Engine: QsB
Engine Manufacturer: Cummins
Displacement: 6.7L,6700 ccm
Emission Standard: Tier 4
Fuel: Diesel
Angle a(Compressor Housing): 45/330/3359
Angle B (Turbine Housing): 20/180/360°
Actuator Kit (Pneumatic): 4030865H
Back Plate: 3530923(1154351300,1800016009)
Bearing Housing: 3532630(3591575,4027249,4027882)(0il Cooled)
(1153035450,1900011016B)
Bracket Kit: 4030864H
CHRA: 4030868(4030868H,4027212,3538421,3575215)(1153035900.
1000020136)
Clamp Plate(Turbine): 2839879H
Compressor Housing: 4036745H
Compressor Wheel: 3599649 (3532310)(ind.54.mm, Exd.76.47 mm, Trim
- 51,7+7 Blades,super Back)(1153035401,1200016303)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060(311585,148062,409267-0003,409267-0002
210060-0000,51914)(Paper)
Gasket (Turbine Inlet): 409039-0000(409039-0001,210019,312617
2405022,7C7431)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 3535001(3535001H,3922789)(nox Steel)
Gasket Kit: 3545575H
Gasket Kit: 4032496
Heat Shield: 3519302(1152301340,406400001)
Repair Kit (Major): 3575169(3575169H)(1153035750,5000020021)
Retaining Ring: 3533163H
Turbine Housing: 3529882H
Turbine Wheel: 3519336 (ind.70.05 mm, Exd.59.9 mm, Trim 10.9,12
Blades)(1152301435,1100030005)
Turbocharger Kit: 4033681H
Product Applications:
Fits the Following Models:
2004-12 Industrial with Cummins QSB Engine
2004-12 Truck with Cummins QSB Engine
