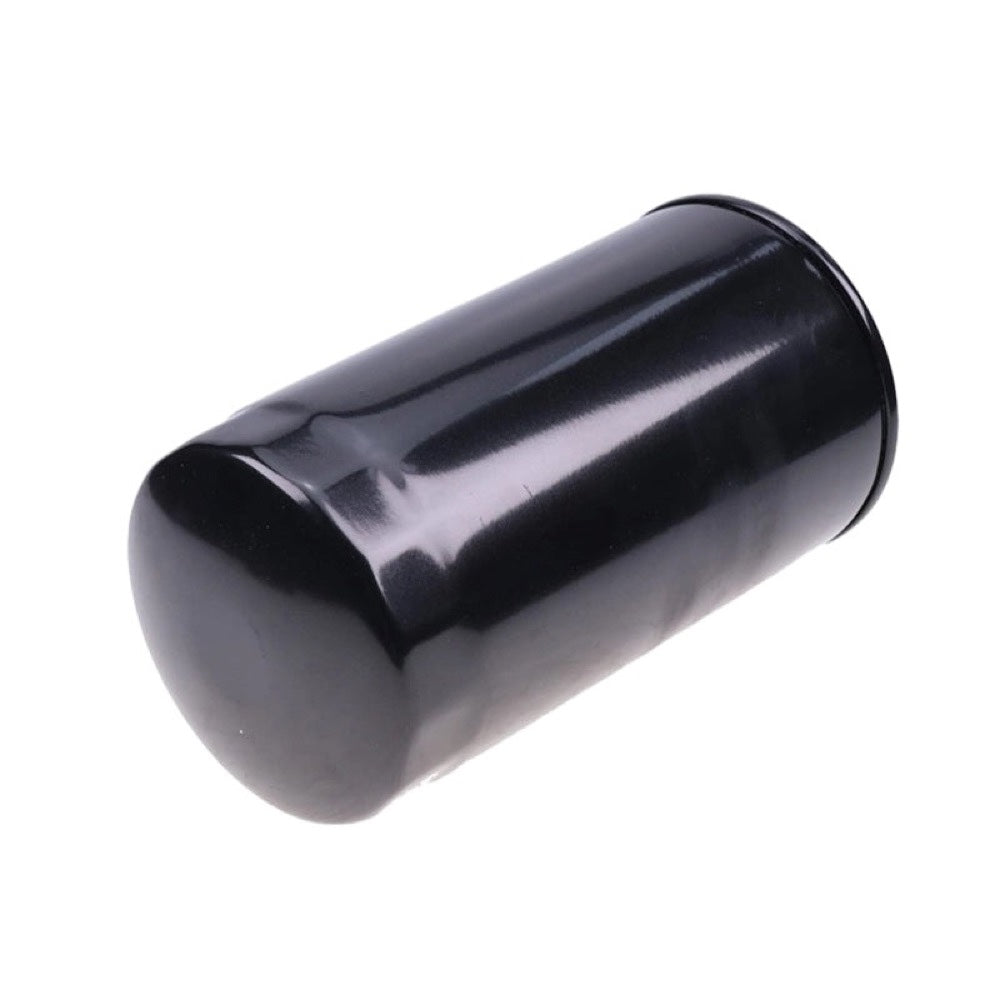

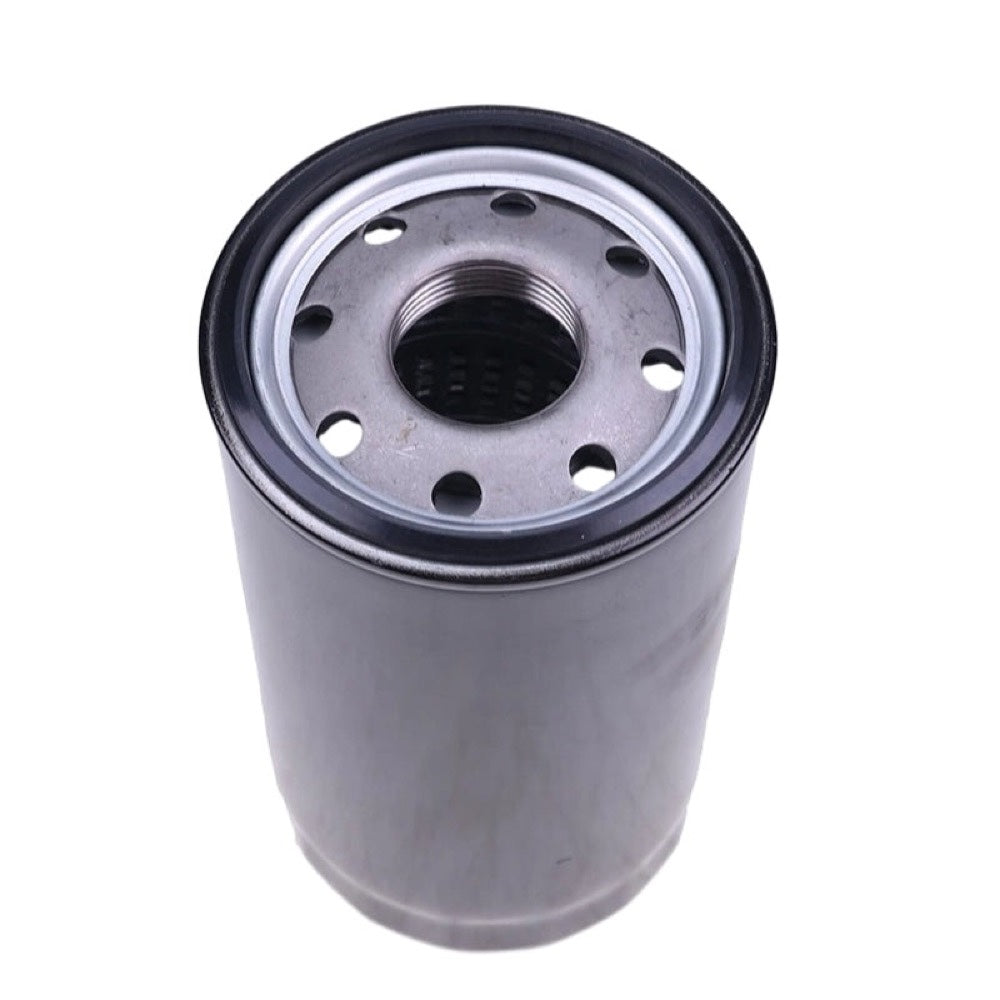

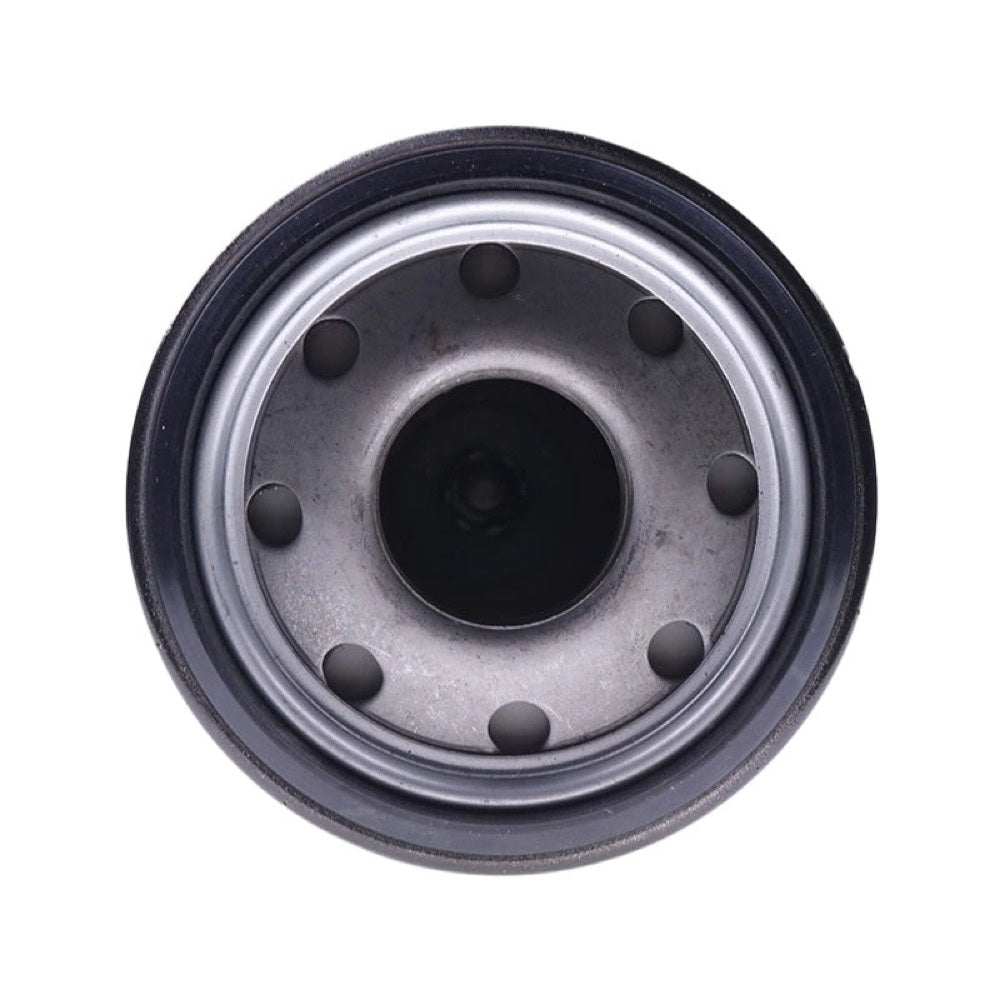

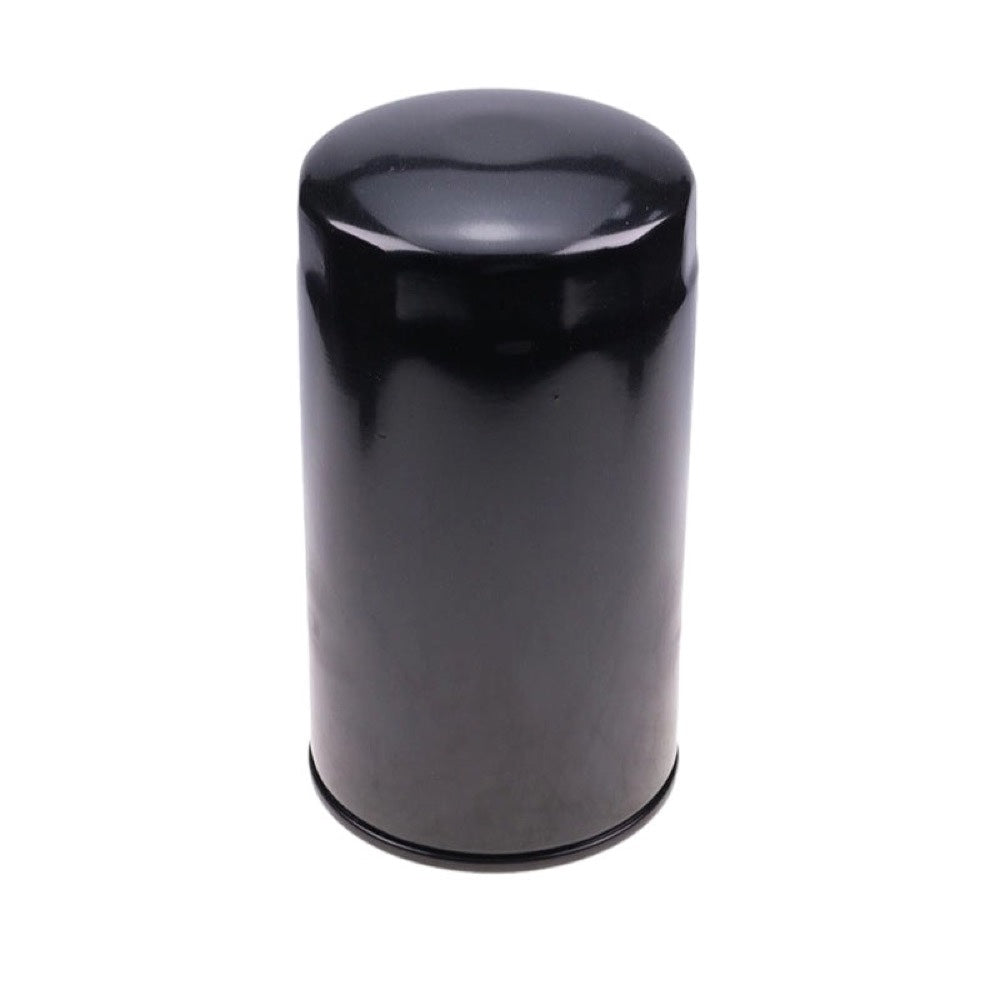

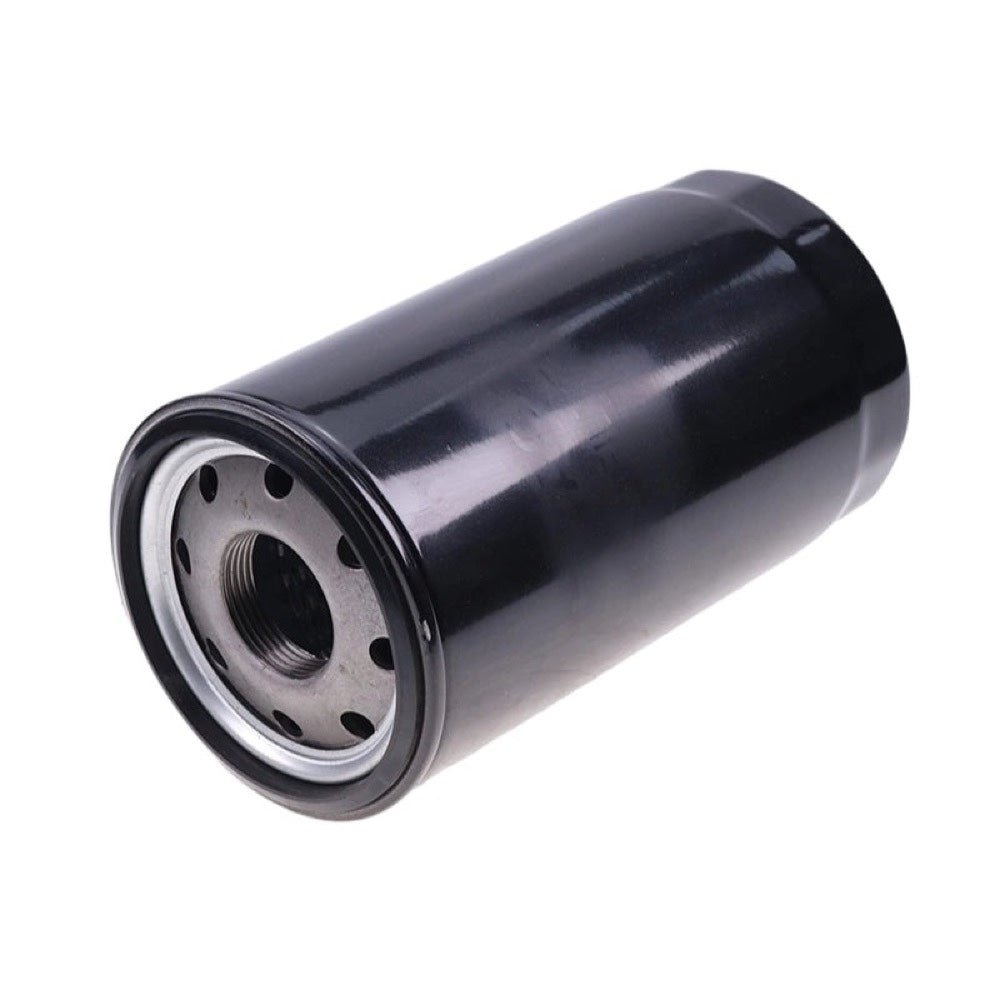

Hydraulic Oil Filter T4620-38033 suitable for Kioti DK35SE DK40SE DK45SE DK50SE Tractor
SKU:ST-82788687
Couldn't load pickup availability
- Overview
- Shipping & Delivery
- Warranty
Part Name: Hydraulic Oil Filter T4620-38033 suitable for Kioti DK35SE DK40SE DK45SE DK50SE Tractor
Part Numbers: T4620-38033, T462038033
This listing is for a New Kioti Hydraulic Filter. The part number is T5710-38031. This replaces the old part numbers of T4620-38032 and T4620-38031.
Product Applications:
Kioto Tractor: DK35, DK35H, DK40, DK40H, DK45, DK45H, DK50, DK50H, DK55, DK65, DK75, DK90, DS4110HS, DS4510HS, DX7510, DS4110, DS4510, DK4510, DK5010, DK5510, NX4510, NX4510H, NX5010, NX5010H, NX5510, NX5510H, NX6010, NX6010H, RX6620, RX6620P, RX7320, RX7320P, PX1153P, PX1053P, PX9530P
Where Used: Part Number T5710-38031
Model Name Diagram
DK4510 Tractor SUCTIONLINEGROUP T5710-G630A
DK4510HS Tractor SUCTIONLINEGROUP T5710-G630A
DK5010 Tractor SUCTIONLINEGROUP T5710-G630A
DK5010HS Tractor SUCTIONLINEGROUP T5710-G630A
DK5510 Tractor SUCTIONLINEGROUP T5710-G630A
DK5510HS Tractor SUCTIONLINEGROUP T5710-G630A
NX4510(-RL1100092) Tractor SUCTIONLINEGROUP T5528-G490A (PL11-00069 ~ )
NX4510(SW8600001-) Tractor SUCTION LINE GROUP TE1-G411004
NX4510C(-RN6200019) Tractor SUCTIONLINEGROUP T5528-G490A (PN62-00019 ~ )
NX4510C(RX1400001-) Tractor SUCTION LINE GROUP TE1-G411004
NX4510CH(-RN6600198) Tractor SUCTIONLINEGROUP T5528-G490A (PN66-00114 ~ )
NX4510CH(RW6900001-) Tractor SUCTION LINE GROUP TE1-G411004
NX4510H(-RL1600148) Tractor SUCTIONLINEGROUP T5528-G490A (PL16-00145 ~ )
NX4510H(RW1300001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5010(-RL1200012) Tractor SUCTIONLINEGROUP T5528-G490A (PL12-00081 ~ )
NX5010C(-PN6300034) Tractor SUCTIONLINEGROUP T5528-G490A (PN63-00035 ~ )
NX5010C(SX1500001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5010CH(-RN6700108) Tractor SUCTIONLINEGROUP T5528-G490A (PN67-00077 ~ )
NX5010CH(SW7000001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5010H(-RL1700004) Tractor SUCTIONLINEGROUP T5528-G490A (PL17-00137 ~ )
NX5510(-RL1300064) Tractor SUCTIONLINEGROUP T5528-G490A (PL13-00045 ~ )
NX5510(SW8600001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5510C(-RN6400016) Tractor SUCTIONLINEGROUP T5528-G490A (PN64-00030 ~ )
NX5510C(SX1600001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5510CH(-RN6800030) Tractor SUCTIONLINEGROUP T5528-G490A (PN68-00095 ~ )
NX5510CH(SW7100001-) Tractor SUCTION LINE GROUP TE1-G411004
NX5510H(-RL1800004) Tractor SUCTIONLINEGROUP T5528-G490A (PL18-00137 ~ )
NX6010CH Tractor SUCTIONLINEGROUP T5528-G490A (PN39-00093 ~ )
NX6010H(-PP4400109) Tractor SUCTIONLINEGROUP T5528-G490A (PP44-00107 ~ )
PX1053PC Tractor SUCTION LINE GROUP TG1-G411002
PX1153PC Tractor SUCTION LINE GROUP TG1-G411002
PX9530PC Tractor SUCTION LINE GROUP TG1-G411002
RX6010C Tractor SUCTION PIPE GROUP RX60PC-T0620B (PA83-00001 ~ )
RX6010PC Tractor SUCTION PIPE GROUP RX60PC-T0620B (PH80-00001 ~ )
RX6620PC(-PP3200116) Tractor SUCTION PIPE GROUP RX53-T0620B
RX6620PC(RW4800001-) Tractor SUCTION PIPE GROUP RX53-T0620B
Where Used: Part Number T4620-38032
Model Name Diagram
DK35SE Tractor INLET FILTER GROUP EX45H-T735A
DK35SEH Tractor INLET FILTER GROUP EX45H-T735A
DK35SEHC Tractor INLET FILTER GROUP EX45H-T735A
DK40HSE Tractor INLET FILTER GROUP EX45H-T735A
DK40SE Tractor INLET FILTER GROUP EX45H-T735A
DK40SEHC Tractor INLET FILTER GROUP EX45H-T735A
DK45 Tractor INLET TUBE GROUP D43-T360A
DK45C Tractor INLET TUBE GROUP D43-T360A
DK45CSE Tractor INLET FILTER GROUP EX45H-T735A
DK45HSE Tractor INLET FILTER GROUP EX45H-T735A
DK45S Tractor INLET TUBE GROUP D401-T360A
DK45SC Tractor INLET TUBE GROUP D401-T360A
DK45SE Tractor INLET FILTER GROUP EX45H-T735A
DK45SEHC Tractor INLET FILTER GROUP EX45H-T735A
DK50 Tractor INLET TUBE GROUP D43-T360A
DK50C Tractor INLET TUBE GROUP D43-T360A
DK50SE Tractor INLET FILTER GROUP EX45H-T735A
DK50SEH Tractor INLET FILTER GROUP EX45H-T735A
DK50SEHC Tractor INLET FILTER GROUP EX45H-T735A
DK55 Tractor INLET TUBE GROUP DK55-T360A
DK55C Tractor INLET TUBE GROUP DK55-T360A
DK55CHSE Tractor SUCTION FILTER GROUP EX60H-T735A
DK55HSE Tractor SUCTION FILTER GROUP EX60H-T735A
DK65 Tractor HYDRAULIC FILTER GROUP D62-T370A
DK65C Tractor HYDRAULIC FILTER GROUP D62-T370A
DK65S Tractor HYDRAULIC FILTER GROUP D56-T370A
DK65SC Tractor HYDRAULIC FILTER GROUP D56-T370A
DK75 Tractor HYDRULIC SYSTEM GROUP DK754-T2453A
DK90 Tractor HYDRULIC SYSTEM GROUP DK752-T2453A
DS4110 Tractor HYDRAULIC FILTER GROUP DS4510-T730A
DS4110HS Tractor HYDRAULIC FILTER GROUP DS4510-T730A
DS4510 Tractor HYDRAULIC FILTER GROUP DS4510-T730A
DS4510HS Tractor HYDRAULIC FILTER GROUP DS4510-T730A
DX7510 Tractor HYDRULIC SYSTEM GROUP DK754P-T2453A
DX9010 Tractor HYDRULIC SYSTEM GROUP DK904P-T2453A
RX6010C Tractor HYDRULIC SYSTEM GROUP MX58-T0405A
RX6010PC Tractor HYDRULIC SYSTEM GROUP MX58-T0405A
Where Used: Part Number T4620-38031
Model Name Diagram
DK35 Tractor INLET TUBE GROUP D300-T730A
DK35CR Tractor INLET TUBE GROUP D300-T730A
DK40 Tractor INLET TUBE GROUP D360-T730A
DK40CR Tractor INLET TUBE GROUP D360-T730A
DK45 Tractor INLET TUBE GROUP D43-T360A
DK45C Tractor INLET TUBE GROUP D43-T360A
DK50 Tractor INLET TUBE GROUP D43-T360A
DK50C Tractor INLET TUBE GROUP D43-T360A
Bobcat Model: CT 335, CT 440, CT 445, CT 450
