A replacement fan clutch can look close to the old unit and still differ at the mounting face, fan pilot, control type, or connection. Before ordering, identify the exact fan-drive arrangement and compare the replacement against the equipment’s parts information. A model name by itself is not enough to confirm fit.
Identify the clutch and fan-drive type
Start with the complete part number on the installed unit and the engine manufacturer’s parts catalog. Record the machine model and serial number, engine model and serial number, and any number or supersession marked on the clutch. Note whether the system uses a viscous clutch, an air-operated on/off clutch, or a two-speed fan drive. These designs do not share one universal replacement procedure or interchange rule.
Fan-drive designs can have different operating modes. For example, Caterpillar describes its 383-7362 as a two-speed fan clutch drive that controls fan speed according to cooling needs. That description applies to that listed assembly; it does not establish that another fan clutch is two-speed or compatible with the same application. Check the machine-specific parts diagram and service information.
Compare the mounting interfaces

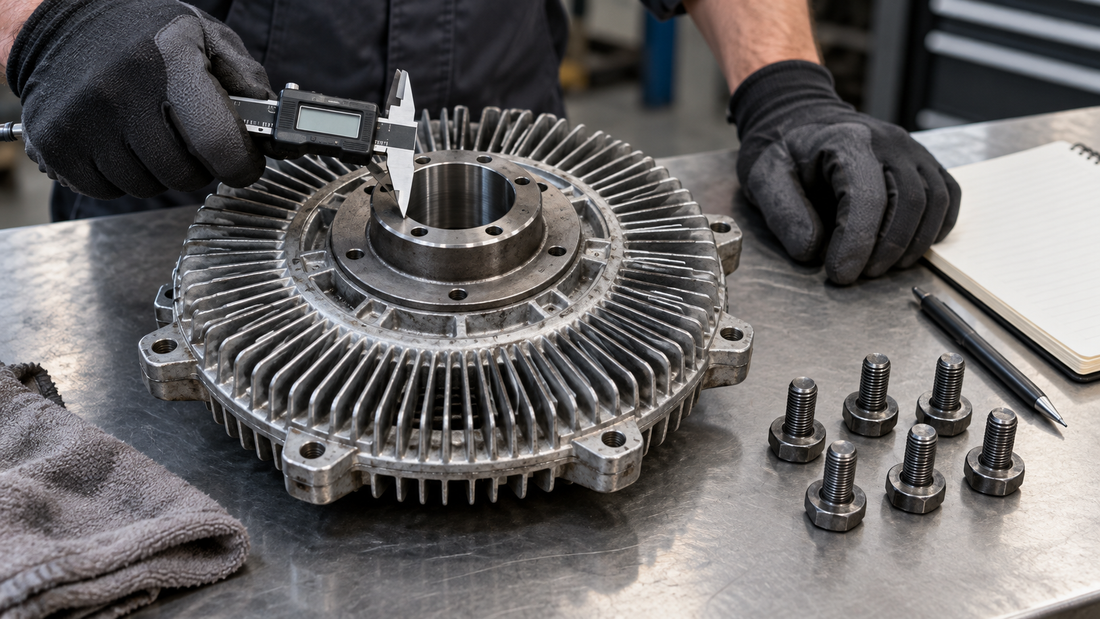

Photograph the clutch from the front, rear, and side before removal when it is safe to do so. After removal, compare the mounting face, bolt count and spacing, central pilot diameter, shaft or hub interface, and overall depth. Also note whether the unit mounts at the front or rear of the fan drive. A mismatch in one interface can prevent installation even when the clutch looks similar.
BorgWarner’s on/off fan-drive service guide lists distinct front-air and rear-air clutch configurations and, for specific product families, different fan-pilot diameters. Treat those dimensions as examples from that guide, not universal specifications. Measure only as the machine or clutch manufacturer instructs, and compare the result with the exact part listing.
Check control connections and the fan
Record every air line, electrical connector, sensor lead, and bracket attached to the original unit. Compare connector shape, pin count, routing, and the presence of any control valve or solenoid. Do not assume a visually similar connector or a matching bolt pattern means the control system is the same.
Check the fan itself as a separate component. Note blade count, blade orientation, bolt pattern, fan-pilot fit, and clearance around the shroud and nearby parts. Photograph labels and casting marks. If the fan, hub, or clutch has been changed previously, use the current machine configuration and parts catalog rather than relying only on the original build description.
Use a complete fitment check
- Match the full part number and any supersession against the equipment’s parts information.
- Confirm engine and machine model, serial number, and configuration.
- Compare clutch type, mounting side, bolt pattern, pilot diameter, and hub interface.
- Check control connections, fan dimensions, rotation/orientation notes, and clearance where specified.
- Confirm what the listing includes; a clutch assembly, hub, pulley, and fan may be separate items.
Stellar Spares lists multiple fan clutches for equipment. Use each product page’s stated part numbers and applications, then verify the match against the machine’s exact serial and engine information before ordering. If a detail cannot be confirmed, send the part number and clear photos of the label, mounting face, connections, and fan interface for review.
Before installation
This checklist helps identify a replacement; it is not a repair procedure. Follow the equipment manufacturer’s service instructions and safety precautions. Keep hands and tools clear of the fan and rotating parts, and have a qualified technician confirm the application when the configuration or fitment is uncertain.
Frequently asked questions
Can I match a fan clutch by outside diameter alone?
No. The part number, mounting orientation, pilot and hub interfaces, control type, and equipment configuration also matter.
Are two-speed and on/off fan clutches interchangeable?
Do not assume they are. Verify the exact system type and approved replacement in the machine-specific parts information.
What should I photograph before asking for help?
Photograph the part number, front and rear mounting faces, control connections, fan interface, and the machine and engine identification plates.
